The X-Effects LED and X-Effects LED HO 5500K Projectors create dynamic lighting effects in a wide range of indoor or outdoor applications. Effects are created by projecting white light through the edges of two rotating pieces of Effects Glass that are mounted off-center of the optical path. This results in a projection with linear motion for creating reflected water, blowing fire, cascading rain, northern lights, and other vivid, animated lighting effects.
Please note that the X-Effects LED Projectors do not ship with a lens. Choose from the available four lens accessories when ordering to achieve the beam spread your project requires.
The X-Effects LED Projectors feature either 1,400 or 3,000 (HO) lumens of output of 45 and 90 watts (HO) of power. The X-Effects LED HO can maintain over 100 lumens at 65ft+ (20m+).
The X-Effects LED Projectors are IP65-rated for indoor or outdoor use, offering the versatility to create dynamic lighting effects anywhere they are required.
Whether you need to shine your effect on a building across the street or on a wall five feet away, the X-Effects LED Projectors have the proper lenses to meet every projection need.
The X-Effects LED Projectors can achieve a variety of different lighting effects by changing gobos or adding color into either the Static Gobo/Filter position or into the two rotating Dynamic Effects Glass positions.
Lighting effects should be seen, not heard. The X-Effects LED Projectors are passively cooled enabling them to operate without noisy fans.
The X-Effects LED Projectors feature on-board controls of the fixture’s output, as well as the speed and direction of both Effects Glass Gobos. The fixtures can also be controlled via DMX and are RDM compatible.
What’s In The Box:
Please note that the X-Effects LED Projector does not ship with a lens. Choose from the available four lens accessories when ordering to achieve the beam spread your project requires. Lens options include: 19°, 30°, 50° and 70°. See photometrics tab for more information.
Input Voltage: 100-240VAC
Power Consumption: 45 and 90 (HO) Watts at maximum output
LED Source Output: 5500 LED - 3000 lumens/5600 lumens (HO)
Color Temperature: 5500K
Lumen Maintenance: 50,000 hours at 45C (LM-79-08)
Power/Data Connection: UTL Connector on rear panel
Insulated IP65 hybrid power/data cable with UTL connector
6ft/2m user end unterminated cable comes standard
Custom cable options available
DMX512 In/Out via wired hybrid cable
RDM compatible
Onboard dimming via potentiometers
Number of DMX Channels: 5 (5500K & UV)
1- Gobo #1 Direction
2- Gobo #1 Speed
3 - Gobo #2 Direction
4 - Gobo #2 Speed
5 - Output Intensity
See user guide for wiring diagram and data/control information
Operating Temp.: -13° to 113° F (-20° to 45° C)
IP Rating: IP65
Dimensions: 5.5”L x 10.1”W x 5.8”H (14.2cm x 25.8cm x 14.8cm)
5.5”L x 10.1”W x 6.5”H – HO (14.2cm x 25.8cm x 16.7cm - HO)
Weight: 9 lbs (4.1 kg)
13 lbs (5.8kg) HO
Housing: Powder Coated Aluminum
Approvals:
ETL / UL Standards #1573 and # 8750
cETL / CSA C22.2 #166
CE
X-Effects LED 5500K Projectors:
297000055001 X-Effects LED Projector – 5500K – Black – No Lens
297100055001 X-Effects LED HO Projector – 5500K – Black – No Lens
Lenses for X-Effects LED Projectors:
297000000019 X-Effects LED Projector 19-Degree Lens, Black
297000000030 X-Effects LED Projector 30-Degree Lens, Black
297000000050 X-Effects LED Projector 50-Degree Lens, Black
297000000070 X-Effects LED Projector 70-Degree Lens, Black
297000000S19 X-Effects LED Projector 19-Degree Lens, Silver
297000000S30 X-Effects LED Projector 30-Degree Lens, Silver
297000000S50 X-Effects LED Projector 50-Degree Lens, Silver
297000000S70 X-Effects LED Projector 70-Degree Lens, Silver
Please see the X-Effects LED 5500K Data Sheet for complete order tree.
Accessory Gobos & Color Filters for the X-Effects LED
The X-Effects LED Projector can achieve a variety of different lighting effects by changing gobos or adding color into either the Static Gobo/Filter position or the two rotating Dynamic Effects Glass positions.
Standard Static Gobos and Color Filters for the X-Effects LED:
297000000095 X-Effects LED Cyan Water Effect Filter
297000000090 X-Effects LED Green Aurora Effect Filter
297000000085 X-Effects LED Amber Fire Effect Filter
1205YYYYSXFX X-Effects LED Static Permacolor Dichroic Glass Filter
YYYY = four digit color number
Visit the Permacolor page to learn more: www.rosco.com/permacolor
250XXXXXSXFX X-Effects LED Static Standard Steel Gobo
255XXXXXSXFX X-Effects LED Static Image Glass Gobo
255XXXXXSXFX X-Effects LED Static ColorWave Gobo
XXXXXX = five digit gobo number
Custom Static Gobos for the X-Effects LED:
2507210ISXFX X-Effects LED Custom Static Steel Gobo
260CUSBWSXFX X-Effects LED Custom Static B&W Glass Gobo
260CUS1CSXFX X-Effects LED Custom Static One-Color Glass Gobo
260CUS2CSXFX X-Effects LED Custom Static Two-Color Glass Gobo
260CUSMCSXFX X-Effects LED Custom Static Multi-Color Glass Gobo
Standard Dynamic Effects Glass Gobos for the X-Effects LED:
297000000075 X-Effects LED Replacement Dynamic X-Effects Glass
255XXXXXDXFX X-Effects LED Dynamic Image Glass Gobos (96mm)
Visit the Image Glass page to see all of the available options: www.rosco.com/imageglass
255XXXXXDXFX X-Effects LED Dynamic ColorWave Gobos (96mm)
Visit the ColorWaves page to see all of the available options: www.rosco.com/colorwaves
XXXXXX = five digit gobo number
Custom Dynamic steel and glass gobos can be made for the X-Effects LED. Custom gobo art for the X-Effects LED Projector must be designed into the fixture’s “donut-shaped” image area.
Custom Dynamic Gobos for the X-Effects LED:
2507210IDXFX X-Effects LED Custom Dynamic Steel Gobo
260CUSBWDXFX X-Effects LED Custom Dynamic B&W Glass Gobo
260CUS1CDXFX X-Effects LED Custom Dynamic One-Color Glass Gobo
260CUS2CDXFX X-Effects LED Custom Dynamic Two-Color Glass Gobo
260CUSMCDXFX X-Effects LED Custom Dynamic Multi-Color Glass Gobo

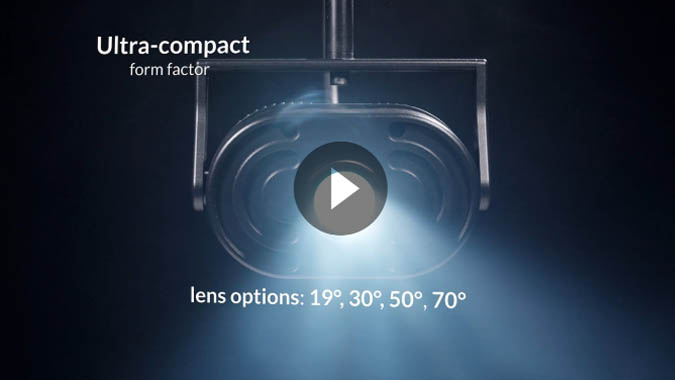

X-Effects® LED Projector – 5500K Video
Rosco X-Effects® LED Projector - Example Effects Video
X-Effects Recipe Video Collection
3 Easy Music Video Lighting Setups Using the Rosco X-Effects® Projector
Case Study: 3 Easy Music Video Lighting Setups Using A Rosco X-Effects® Projector
Case Study: X-Effects® Projectors Shed Light On Ocean Conservation Inside The Blue Paradox
Case Study: Creating An Underwater HOME For Phoebe The Flamingo at Tampa Airport
Case Study: Subtle Lighting Effects Evoke The Mystery Of Chinese Ritual Bronzes
Case Study: Rosco Effects® Create An Elemental Water Effect For Hakkasan
Case Study: Five Techniques For Creating Spectacular Lighting Effects With Rosco X-Effects®
Case Study: A Flowing River Of Light Provides Unique Bike Path Illumination
Case Study: Revealing “The Secret” Lighting Tricks Illuminating An Experimental Film
Case Study: Night Of A Million Lights – A Holiday Light Display That Helps Future Wishes Come True
Case Study: Creating An Aurora For Antarctic Dinosaurs Using The X-Effects® LED Projector
X-Effects® LED HO Projector 5500K - IES Files
X-Effects® LED Projector 5500K - IES Files
X-Effects® LED HO Projector - DWG File
X-Effects® LED Projector - DWG File
X-Effects® LED HO Projector - SAT File
X-Effects® LED Projector - SAT File
Photometric data for X-Effects LED 5500K projectors. A matching IES data file link can be found underneath each photometric chart.
Rosco X-Effects LED Photometrics File – 19° Lens
Rosco X-Effects LED Photometrics File – 30° Lens
Rosco X-Effects LED Photometrics File – 50° Lens
Rosco X-Effects LED Photometrics File – 70° Lens
Rosco X-Effects LED HO Photometrics File – 19° Lens
Rosco X-Effects LED HO Photometrics File – 30° Lens
Rosco X-Effects LED HO Photometrics File – 50° Lens
|
Amber Blowing Fire |
Red Glowing Fire |
|
Aurora Borealis |
Cascading Water |
|
Floating Hearts |
Moving Clouds |
|
Rainbow Spirals |
Reflected Water |
|
Rustling Leaves |
Smoke and Flowing Water |
|
Falling Autumn Leaves |
Falling Snowflakes |
|
Sparkling Pink Bubbles |
Spooky Trees |
|
Swimming Sharks |
Please complete this form
Specifications:
Machined aluminum alloy lens holder
Precision optics
Available beam angles: 19°, 30°, 50°, 70°
Available colors: Black, Silver
For outdoor installations where the lens is mounted facing upwards, we recommend purchasing the X-Effects LED Lens Cover #297000000020. This accessory helps prevent pooling of water in the lens, which can lead to projection distortion and accelerate lens wear.
Product Numbers:
The X-Effects LED Lens Cover accessory helps prevent pooling of water in the lens for outdoor installations where an X-Effects LED lens is mounted facing upwards.
Download the X-Effects® LED Lens Cover Installation Instructions:
Download the X-Effects® LED Lens Cover Installation Instructions
Product Numbers:
Pair of protective caps to prevent water ingress and damage to the connectors of the X-Effects fixture and cable. The caps are threaded to easily screw on and off for protection when the cable is detached from the fixture.
Download the Installation Guide
Product Numbers:
This X-Effects LED Framing Shutters provide control of the fixture’s beam-size and shape. The four-leaf shutter accessory can be installed in a variety of ways along the magnetic ring around the static gobo position, allowing the fixture’s beam to be cut from the top, bottom and/or both sides.
Specifications:
Number of Leaves: Four (top/bottom/left/right)
Product Numbers:
Rosco’s 4-Pattern Gobo Wheel gobos can create unique lighting effects when inserted into an X-Effects LED Projector. Four gobo patterns are combined onto a single Dynamic-sized Black & White glass gobo to provide four different designs to rotate through, without having to remove or replace any gobos.
The 4-Pattern Gobo Wheel gobos are sized and configured specifically for the second Gobo Rotation Carrier further from the LED. This Dynamic gobo slot provides the sharpest focus for the patterns. Simply line up the desired pattern into the optical path and stop the gobo rotation to have the preferred gobo displayed.
Replacement Effects Glass Gobo for the X-Effects LED Projector.
Note – the fixture ships with two of these gobos. This single-gobo accessory is available to replace gobos that may break or become lost during use.
Product Numbers:
Rosco’s textured-dichroic ColorWaves gobos can create unique, color-blended lighting effects when inserted into an X-Effects LED Projector. These gobos are available in two sizes to fit into the Static Color/Gobo Slot or the larger (96mm) gobos to fit into the fixture’s two rotating Dynamic Effects Glass positions.
Product Number:
XXXXXX = five digit gobo number
Visit the ColorWaves page to see all of the available options: www.rosco.com/colorwaves
Rosco’s clear, textured Image Glass gobos can create unique lighting effects when inserted into an X-Effects LED Projector. These gobos are available in two sizes to fit into the Static Color/Gobo Slot or the larger (96mm) gobos to fit into the fixture’s two rotating Dynamic Effects Glass positions.
Product Number:
XXXXXX = five digit gobo number
Visit the Image Glass page to see all of the available options: www.rosco.com/imageglass
A specialized, cyan-colored, dichroic glass filter that features wavy etches to allow a portion of the X-Effects LED Projector’s natural light through – helping to create a more-nuanced, realistic water effect.
Product Number:
A specialized, amber-colored, dichroic glass filter that features wavy etches to allow a portion of the X-Effects LED Projector’s natural light through – helping to create a more-nuanced, realistic fire effect.
Product Number:
A specialized, light green-colored, dichroic glass filter that features wavy etches to allow a portion of the X-Effects LED Projector’s natural light through – helping to create a more-nuanced, realistic Aurora Borealis/Northern Lights effect.
Product Number:
The Rosco Pole Mount is a rugged mounting accessory for attaching Rosco Projectors and Rosco Cube products to interior or exterior round poles.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Pole Mounts attach to any round structure via Stainless Steel Straps (kit sold separately).
Product Numbers:
The Rosco Wall Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior vertical surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
The Rosco Surface Mount allows for mounting Rosco Projectors and Rosco Cubes to interior or exterior horizontal surfaces.
Powder-Coated Steel support that provides rigid attachment and a clean, mounted installation.
1-3/5” (42mm) open tubing provides room for power/data cables for a clean installation.
Product Numbers:
3’ (1m) safety cable with convenient threaded connector designed to wrap around the fixture’s mounting point to provide security for any Image Spot installation.
